What Is Lost-Wax Casting? An Ancient Craft, Modernized
If you're looking to make jewelry, or even cast small figurines, you likely have seen "lost wax casting" floating around your research. But what is it?
In short, it's a process with roots extending thousands of years into early metallurgy..
The concept?
An artisan carves an object from wax or another sacrificial material, then surrounds that pattern with a heat-resistant material called investment. The mold is heated in a kiln. The pattern melts, burns, or decomposes, leaving an empty cavity. Molten metal enters that cavity and reproduces the pattern's shape.
Once the metal cools, the investment is broken away. The original pattern is gone. The mold is destroyed. The metal object remains. The process does not preserve the original material. It preserves the information contained in its form.
Why is it called lost-wax casting?
The name is literal. The wax pattern is sacrificed during burnout so metal can occupy the space it leaves behind. The French term cire perdue, often used in museum and art writing, also means lost wax. In industrial manufacturing, the term investment casting is more common.
- Lost-wax casting describes what happens to the pattern.
- Investment casting describes the mold system surrounding it.
Historically, the pattern was wax. Modern versions may use 3d printed castable photopolymer resin or other sacrificial materials. The material can change, but the manufacturing logic remains untouched.
An ancient solution to a difficult problem
Lost-wax casting is too old to credit to a single inventor. One of the earliest known examples is a small copper amulet from Mehrgarh, in present-day Pakistan, dating to roughly 6,000 years ago. Lost-wax methods later appeared across many cultures and regions. Some traditions may have spread through trade, migration, or shared knowledge. Others may have developed independently.
The process answers a universal manufacturing question: how do you make a detailed metal object that would be difficult to carve, hammer, forge, or assemble directly? Wax offers an elegant answer. It can be carved, softened, joined, textured, repaired, and sculpted with relatively simple tools. It can hold fine detail, then be removed with heat after the surrounding mold forms.
The wax becomes a temporary stand-in for the metal object.
Ancient casting was not simple craft
Ancient lost-wax casting is sometimes reduced to four materials: wax, clay, fire, and metal. That is accurate, but misleadingly simple. A successful casting requires control of several material systems at once.
- The pattern must keep its shape during handling.
- The mold must capture detail without cracking.
- Feed channels must let metal enter while air and gases can escape.
- The mold must survive burnout and casting temperatures.
- The metal must remain fluid long enough to fill the cavity.
- The finished casting must be cleaned, repaired, and refined.
The equipment may have been less advanced. The knowledge was not. Traditional casters needed to understand modeling, mold construction, firing, alloy behavior, heat control, flow, shrinkage, and finishing as one connected system. Lost-wax casting was never merely a way to pour metal. It was, and remains, an integrated craft.
Lost-wax casting across cultures
Lost-wax casting became especially valuable as metalworkers attempted more complex forms. Small ornaments could be cast solid. Larger sculpture could be made hollow to reduce weight, conserve material, and improve casting behavior. Greek and Roman foundries used lost-wax methods for increasingly sophisticated bronze sculpture. Distinct traditions also developed throughout Africa, South Asia, Europe, and elsewhere.
Those traditions did not use identical equipment or materials. Local resources affected mold composition. Available metals changed the alloys. Cultural practices shaped the objects being made, while regional knowledge influenced modeling, firing, casting, assembly, and finishing. What connected them was the ability to transfer a form from a temporary material into metal.
Direct and indirect lost-wax casting
One of the most useful distinctions is whether the original pattern can be reproduced.
Direct casting
In direct casting, the artist creates the final pattern directly in wax. That wax is invested, burned out, and replaced with metal. Once casting begins, the original pattern no longer exists. If the casting fails, the artist may have to reconstruct the model.
Direct lost-wax casting often produces a unique object because both the original wax and the investment mold are destroyed. The temporary pattern is not merely a prototype. It is the original object in another material.
Indirect casting
Indirect casting introduces a reusable master or mold. A master model is used to create a rubber or silicone mold. Wax replicas are produced from that mold and cast individually. The master survives while the wax copies remain disposable.
This makes repeated production possible without carving every pattern from the beginning. Modern jewelry manufacturing often uses this method when a finished master is molded and wax copies are injected for production. The investment mold is still destroyed after each casting, but the design can remain available as a physical master, reusable mold, or digital file.
What can be made with lost-wax casting?
Lost-wax casting is closely associated with jewelry, but its applications are much broader.
It can produce rings, pendants, earrings, bracelets, stone settings, sculpture, decorative figures, religious and ceremonial objects, hardware, clasps, handles, fittings, dental and medical components, mechanical parts, miniatures, model components, custom one-off objects, and repeated production pieces.
The process is especially useful for forms with curves, recesses, textures, undercuts, fine details, or interconnected geometry that would be difficult to fabricate directly from sheet, wire, or solid stock. That does not mean every metal object should be cast. Some designs are better fabricated, forged, machined, stamped, soldered, welded, or assembled from separate components. Lost-wax casting is one manufacturing language. Its strength is the range of forms it can express.
The modern lost-wax casting process
Modern equipment offers more control, but the basic sequence remains recognizable.
Create the pattern
The process starts with a temporary version of the intended object. The pattern may be hand-carved from wax, built from wax wire and sheet, injected into a rubber or silicone mold, machined from carving wax, printed in castable resin, or made through a hybrid digital and manual process.
The mold records what is present in the pattern. A clean edge can become a clean edge in metal. A scratch, tool mark, or unintended texture can also transfer. Casting does not automatically improve a model. It reproduces the model, then introduces a new set of manufacturing variables.

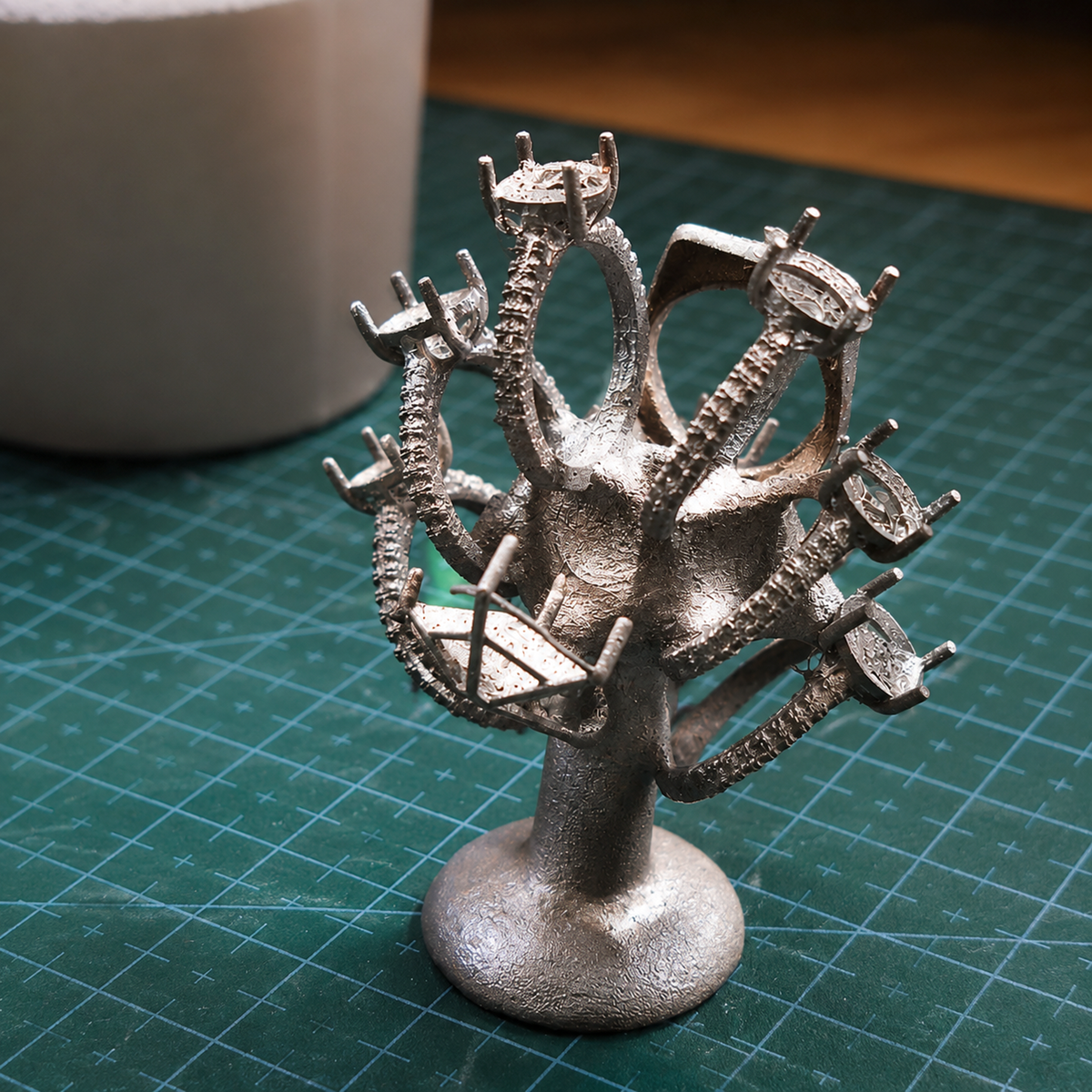

Build the sprue system
The pattern needs a route for molten metal. Wax rods called sprues are attached to the model. During burnout, they become channels connecting the casting cavity to the metal supply. In production work, several patterns may be attached to a central trunk to form a sprue tree.
The sprue system is temporary infrastructure, but it strongly affects the result. It influences how metal enters, how air escapes, and how the object solidifies. A cavity cannot fill simply because it exists. The metal needs a controlled path.
Place the pattern in a flask
In jewelry casting, the sprued pattern is commonly mounted on a rubber base and surrounded by a metal cylinder called a flask. The flask holds the investment during setting, burnout, and casting. Larger sculpture may use ceramic shells or reinforced refractory molds. The equipment changes with scale, but the purpose stays the same: create a heat-resistant mold around a sacrificial pattern.
Mix and pour the investment
Investment begins as a powdered refractory material mixed with water or another specified liquid. Properly mixed, it becomes a slurry that flows around the pattern and records fine detail. Vacuum equipment is often used to reduce trapped air in the mixture and around the pattern.
Once the investment sets, the pattern is sealed inside a solid mold. From that point forward, the quality of the result depends on the model, sprue system, investment mixture, and flask preparation.
Burn out the pattern
The flask enters a burnout kiln and follows a controlled heating schedule. Wax melts and drains before remaining material burns away. Castable resin behaves differently: it must decompose and combust without expanding enough to damage the investment or leaving excessive residue.
Burnout schedules depend on the pattern material, investment type, flask size, pattern thickness, casting method, and manufacturer requirements. Burnout does more than remove the pattern. It also prepares the mold thermally to receive molten metal.
Melt the metal
The casting metal is weighed and melted in an appropriate crucible or furnace. Depending on the workshop, melting may use a torch, electric furnace, resistance melter, or induction system. Silver, gold, bronze, brass, platinum, and other alloys differ in melting range, oxidation, fluidity, shrinkage, contamination sensitivity, and equipment requirements.
Choosing a metal changes more than the color of the finished object. It changes the casting process itself.
Fill the mold
Molten metal must enter and fill the mold before it loses enough heat to solidify. Gravity casting relies mainly on the weight and flow of molten metal. Vacuum casting uses reduced pressure to help draw metal into the mold while gases move through porous investment. Centrifugal casting uses rotational force to drive metal from a crucible into the flask.
Advanced systems may combine vacuum, pressure, induction heating, controlled atmospheres, or automated process control. The machine provides force. The pattern, sprue system, mold, temperatures, and alloy determine how effectively that force is used.
Remove the investment and refine the casting
After the metal solidifies and reaches an appropriate handling condition, the investment mold is broken apart. This is called divesting. The casting emerges attached to its sprues and covered with oxidation, scale, or investment residue. It has changed materials, but it is not finished.
The sprues are removed and their attachment points blended into the surface. The piece may then be pickled, blasted, filed, ground, sanded, tumbled, engraved, soldered, stone-set, polished, plated, patinated, or assembled with other components. The casting machine produces the rough metal form. Finishing determines how the object feels, reflects light, meets adjoining surfaces, and presents the craftsperson's intent. The pour creates the object. Finishing reveals the quality of the work.
Modern pattern-making methods
Lost-wax casting is one casting process supported by several pattern-making methods. Each has different strengths.
Hand-carved wax
Hand carving commonly begins with wax blocks, ring tubes, sheets, rods, or blanks. Material is removed with files, burs, blades, gravers, scrapers, rotary tools, and abrasives. New wax can be added with heated tools.
The craftsperson responds directly to the physical object. Thickness, balance, contour, texture, and proportion can be judged under real light and from every angle. The design can evolve during carving instead of being completely defined before work begins.
Built wax
Some models are constructed rather than carved from one block. Wax wire, sheet, sprue material, and prefabricated components can be bent, joined, layered, or sculpted together. Built wax is especially useful for open frameworks, organic forms, branches, wire-like structures, and models that are easier to assemble than carve. Wax can serve as both the modeling material and the joining material.
Injected wax
Wax injection is useful when a design needs several copies. A master creates a flexible rubber or silicone mold. Heated wax is injected under controlled pressure, cooled, removed, inspected, and prepared for casting. This lets production shops reproduce a design without carving every pattern individually.
The process still demands judgment. Mold construction, wax temperature, pressure, venting, fill time, cooling, and pattern removal all affect the result. The mold preserves the design. Each wax remains temporary.
CNC-machined wax
CNC machining allows a digital design to be cut from machinable wax. The object is created with CAD and CAM software, which generates toolpaths for roughing and finishing operations. CNC-machined wax is useful for symmetrical designs, signet rings, mechanical geometry, controlled dimensions, engraved surfaces, custom settings, repeated references, and mold masters.
It still has physical limits. Cutting tools have diameter and need access to the surface. Deep recesses, sharp internal corners, fragile walls, and undercuts may require smaller tooling, multiple setups, rotary machining, hand refinement, or design changes. Digital precision does not eliminate manufacturing constraints. It relocates where those constraints must be considered.
Castable resin printing
Castable resin lets a digital model be printed directly as a sacrificial pattern. It has expanded jewelry manufacturing because highly detailed patterns can be produced without hand-carving every form or machining every surface. It can support intricate galleries, pavé layouts, organic forms, repeated decorative elements, custom ring sizes, hollow structures, client-specific designs, and complex surfaces with limited tool access.
Castable resin is not simply liquid wax. Printed models must be supported, washed, dried, and sometimes post-cured according to the resin system. Support marks may need refinement. Thick sections can complicate burnout. Residual resin or solvent can affect the investment. The resin, investment, model geometry, preparation, and burnout schedule must work as one system. A printer can make the pattern. The caster still needs to understand what happens after it enters the kiln.
Hybrid pattern making
Many modern jewelers combine manual and digital methods rather than choosing between them. A pattern may be designed in CAD, printed in resin, refined by hand, and sprued with traditional wax. A form may be CNC-machined, then carved to soften transitions or add texture. A hand-carved model may be scanned, digitally modified, and returned to production through resin printing or machining. An injected wax may be individually altered before casting.
Hybrid manufacturing is not a compromise between craftsmanship and technology. It is often the most effective use of both.
Why hand-carved wax still matters
Digital design has not replaced hand-carved wax because the methods support different ways of thinking. With hand carving, the design exists as a physical object from the beginning. The craftsperson can feel its thickness, judge its balance, rotate it under real light, and respond to changes as they occur.
The design does not have to be completely resolved before work begins. A contour can emerge gradually. A mistake can suggest a new direction. An asymmetry can become intentional. Tool marks can remain part of the surface language. Hand carving supports direct physical judgment and improvisation. That does not make it automatically better than digital modeling. It makes it valuable for different reasons.
Why digital methods matter
Digital pattern making offers different advantages. CAD can help designers revise proportions without rebuilding the object, adjust ring sizes systematically, incorporate exact stone dimensions, reuse repeated components, present renderings before metal is committed, preserve design history, and move between several manufacturing methods.
The same digital model may become a printed resin pattern, CNC-machined wax, a master pattern for a reusable mold, or a starting point for later revision of a scanned hand-carved model. The digital file is not the finished object. It is another kind of pattern.
Craftsmanship is not defined by the tool
Discussions of traditional and digital manufacturing often become a false competition. Hand carving is described as authentic. Digital production is described as precise. Neither claim is enough. A hand-carved model can be highly precise, and a digital design can be organic, expressive, and individually refined.
Manual precision lives in trained observation, measurement, tool control, and physical judgment. Digital precision lives in dimensions, constraints, coordinates, repeatable files, and controlled toolpaths. Both methods can make excellent work. Both can make poor work. Craftsmanship is defined by the quality of the decisions made before, during, and after the object takes shape.
Lost-wax casting is not one machine
A vacuum casting machine does not perform the entire process. It performs one operation inside a larger system. A modern casting workshop may include pattern-making equipment such as wax carving tools, wax pens, rotary tools, rubber molds, wax injectors, CNC machines, resin printers, washing and curing systems, and measurement tools.
It may also include investing equipment such as scales, timers, mixing bowls, investment powder, flasks, sprue bases, vacuum chambers, and investment mixers. Burnout equipment can include a programmable kiln, ventilation, flask trays, heat-resistant handling tools, and temperature monitoring. Melting and casting equipment can include crucibles, torches, melting furnaces, vacuum or centrifugal casting machines, induction systems, flask tongs, and heat-resistant surfaces.
Cleanup and finishing add divesting tools, pickling equipment, files and abrasives, rotary tools, grinding and polishing equipment, magnetic pin tumblers, rotary tumblers, ultrasonic cleaners, gravers, soldering tools, and stone-setting tools. No single machine creates the finished piece. Casting is a chain of dependent operations, and the final result is limited by the weakest part of that chain.
Common misunderstandings
The casting machine makes the jewelry
A casting machine helps move molten metal into a mold. It does not create the design, prepare the pattern, build the sprue system, mix the investment, establish the burnout schedule, select the alloy, clean the casting, refine the surface, or finish the jewelry. The machine is important. It is not the craftsperson.
Lost-wax casting always makes a one-of-a-kind object
Direct casting often creates a unique piece because the original wax is destroyed. Indirect casting can reproduce a design through a reusable mold, master model, or digital file. The investment mold is always temporary. The design does not have to be.
Castable resin is the same as wax
Both materials can serve as sacrificial patterns, but they behave differently. Wax melts and drains. Photopolymer resin must decompose and combust. Different resins have different expansion behavior, curing requirements, ash content, and burnout needs. A schedule that works for one material may fail with another.
Hand-carved means less precise
Hand-carved work can be extremely precise. The difference is where the reference system exists. Digital precision is stored in files, dimensions, constraints, and coordinates. Manual precision is stored in measurement, observation, experience, and tool control.
Casting copies the pattern perfectly
Casting is a translation, not a photocopy. The pattern establishes the form, but investment, burnout, the sprue system, alloy, temperatures, casting force, cooling, cleanup, and finishing all influence the result. The pattern sets the intention. The casting process determines how faithfully that intention survives.
Ancient technology is obsolete technology
Lost-wax casting remains relevant because it still solves the same manufacturing problem effectively. Its age is evidence of utility, not irrelevance. Modern equipment has improved control, repeatability, and accessibility. It has not replaced the principle that makes the process useful.
Casting safety is part of the craft
Lost-wax casting combines serious hazards: molten metal, high-temperature kilns and flasks, open flame, rotating or pressurized equipment, investment dust, combustion fumes, acids and cleaning chemicals, resin and solvent exposure, and moisture near extreme heat.
Investment powders may contain crystalline silica. Fine airborne particles can damage the lungs and require appropriate dust control, ventilation, handling practices, and respiratory protection. Burnout also needs suitable ventilation. Wax produces fumes, and resin produces decomposition products. A casting kiln should not be treated like an ordinary household appliance.
Molten metal creates additional risk. Moisture can become steam instantly when exposed to extreme heat. Crucibles, flasks, tools, surfaces, and protective equipment must be appropriate for the process. Safety is not separate from craftsmanship. A controlled process requires a controlled workshop.
Where lost-wax casting fits in a modern workshop
Casting connects several workshop systems. A pattern can begin as hand-carved wax, be digitally designed and printed in castable resin, or be machined from wax on a CNC machine. An existing physical form can be scanned, rebuilt in CAD, and returned to production through machining or resin printing.
The pattern then moves through investment, burnout, casting, divesting, tumbling, engraving, polishing, stone setting, and final assembly. Casting is more than a jewelry process. It is a bridge between digital design and traditional craft. A resin printer makes geometry. A CNC machine creates controlled surfaces and references. A kiln removes temporary material. A casting machine transfers the form into metal. Finishing tools return human judgment to the surface.
Each machine performs an operation. The finished object belongs to the entire system.
Final thought
Lost-wax casting is often described as an ancient process that survived into the modern world. That puts the emphasis in the wrong place. It did not merely survive. It continued evolving.
Clay molds became engineered investments. Open fires became programmable kilns. Bellows became torches, furnaces, and induction systems. Gravity casting expanded into centrifugal, vacuum, pressure, and controlled-atmosphere equipment. Hand-carved wax was joined by injection molding, CNC machining, digital scanning, CAD, and castable resin printing.
Yet the central act remains unchanged. A craftsperson makes a form in a temporary material. That form is surrounded, hidden, and burned away. Metal enters the space it leaves behind. The mold is broken. The object returns in another material.
Modern tools have made the process more controlled, repeatable, and accessible. They have not removed its consequence. The pattern still carries every decision. The mold still records what the maker gives it. The metal still reveals whether the system worked.
The wax is lost. The work remains.
