CAD and CAM are often packaged together, which makes them look like one step. They are not.
CAD describes the part. CAM plans the cut. One answers, “What am I making?” The other answers, “How will this machine make it without breaking a tool, hitting a clamp, or cutting from the wrong origin?” Understanding that handoff removes a surprising amount of beginner confusion.
What CAD does
Computer-Aided Design is where a part is drawn, modeled, dimensioned, and defined. It may be a 2D sign, a mechanical bracket, a wax model, a fixture, a jewelry component, or a complex 3D object. CAD is about geometry: shape, size, relationships, holes, pockets, profiles, surfaces, and features.
A finished CAD model can be visually complete without being ready to machine. It describes the destination, not automatically the route.
What CAM does
Computer-Aided Manufacturing turns design geometry into a machining strategy. CAM decides which tool will cut, how the stock is set up, where the work origin is, what order features are cut, how deep each pass runs, how material is held, and how the machine moves safely around the job.
CAM creates toolpaths, simulates operations, and exports machine code. You may use one package for both CAD and CAM or separate tools for each. The important distinction remains: you can design a part without knowing how to machine it, and you can create CAM toolpaths for a part someone else designed.
CAD is not automatically machine-ready
Before a CNC machine cuts, CAM still needs to know the material, stock size, part location, machining side, tool selection, cutting depth, origin, workholding, tabs or fixtures, roughing and finishing strategy, tool access, and whether multiple setups are required.
A CAD model is the destination. CAM is the route.
The role of G-code
G-code is the instruction language used by many CNC machines. Most beginners do not write it manually; CAM software usually generates it. But it helps to know what it does: it tells the machine where to move, how fast to move, when to run the spindle, how deep to cut, when to lift, what path to follow, and when to stop.
A machine is not interpreting the beauty of a CAD model. It is following instructions. A correct design can still make a bad part if the toolpath or setup is wrong.
The beginner CNC software stack
- CAD software: where the part is designed.
- CAM software: where toolpaths are created.
- Post processor: translates CAM output for a particular controller or machine.
- Controller software: sends those instructions to the machine.
The clean mental model is simple: CAD draws the part; CAM plans the cut; the post processor translates the plan; the controller runs the machine. The operator still controls setup and verifies the result.
Origins connect software to material
CNC machining depends on defined references. The machine needs to know where the material is, where the part begins, and where the tool is relative to the workpiece. You may hear zero, work zero, origin, work coordinate system, stock origin, or datum. The terminology varies, but the purpose is the same: establish a known starting reference.
If the reference is wrong, the machine can cut in the wrong place, miss the part, cut too deep, crash into clamps, or ruin the workpiece. The digital design lives in software space; the stock lives in machine space. The origin connects them.
Fixturing affects CAD and CAM
A fixture holds, locates, supports, or repeatably positions a workpiece. It can be clamps and tape or a custom-machined system. Beginners often think about the part first and holding it later. Experienced makers think about both together.
The machine cannot cut accurately if the work moves. It cannot cut through a clamp, reach through a vise jaw, or machine a surface blocked by a holding method. The CAM plan must avoid the fixture, and the CAD design may need extra stock, tabs, screw holes, clamping zones, locating surfaces, or a plan for flipping the part.
Designing for CNC is different from designing for 3D printing
Both begin with digital design, but 3D printing is usually additive while CNC machining is usually subtractive. A CNC tool has diameter, length, shape, rigidity, and access limits.
Tool access and inside corners
A cutter must physically reach a feature. Deep, narrow pockets can be inaccessible; tall thin walls can vibrate; a round end mill cannot produce a perfectly sharp internal corner without an added strategy. Fillets, dogbone corners, relief cuts, smaller tools, secondary operations, or a different method may be appropriate.
Workholding and setup direction

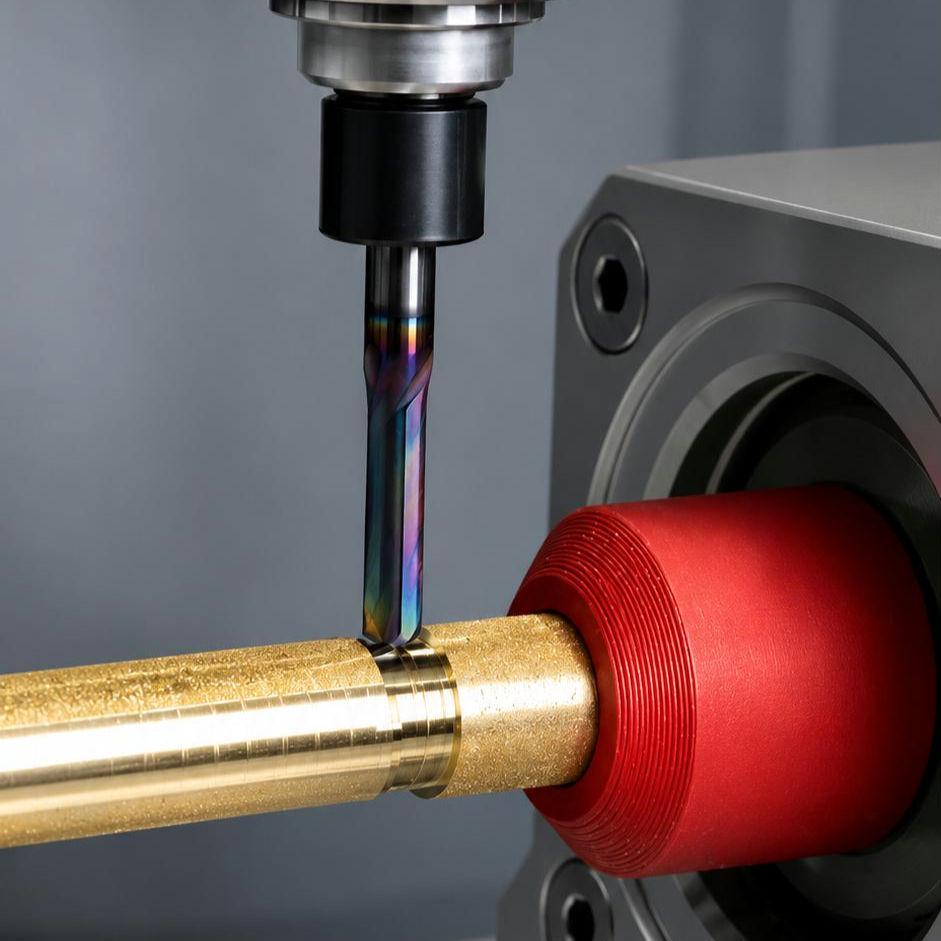

A part must be held while material is removed. A simple three-axis machine usually cuts from above, so underside and side features may require flipping, multiple setups, a fixture, indexing, a fourth axis, or a redesign. Good CNC design asks, “How will I hold this while cutting it?” before the design is finished.
Material removal
More material removal can mean more cutting time, tool wear, heat, chips, risk, and cost. Ask not only what shape you want, but how much material must be removed to get there.
Common beginner misunderstandings
- CAD and CAM are the same thing: they are related but distinct, even inside one program.
- A finished model is ready to cut: it still needs stock setup, origin, tools, strategy, and workholding.
- CAM automatically knows the best strategy: it does not know your priorities unless you set up the job correctly.
- A simulation guarantees success: it may not capture poor clamping, deflection, vibration, dull tools, bad zeroing, or machine limits.
- The machine is the hard part: setup often matters more than beginners expect.
- Friendly CAM has no learning curve: better software helps, but it does not change physics.
A practical first CAD-to-CAM workflow
- Design a simple part. Use clear dimensions and inspectable features such as holes, pockets, profiles, or engraving.
- Choose a suitable material. Wax, wood, acrylic, foam, or soft machinable plastics can make early learning more forgiving.
- Decide how it will be held. Clamps, a vise, tape, screws, a fixture, tabs, or oversized stock all affect the plan.
- Set stock and origin in CAM. This connects the digital file to the physical workpiece.
- Choose a tool. Use the largest tool that can make the required geometry; small tools are fragile and slower.
- Create simple toolpaths. Start with facing, pocketing, contouring, drilling, or engraving.
- Simulate. Check depth, origin, side selection, clamp clearance, and whether the part releases too early.
- Export the correct machine code. Use the appropriate post processor.
- Set up carefully. Install the tool, secure the stock, set origin, and check clearances.
- Run, inspect, and learn. Look for cut quality, dimensions, chatter, melting, burning, burrs, poor finish, or movement, then adjust.
Final thought
CAD and CAM are not just software categories. They are two ways of thinking. CAD captures the idea; CAM turns it into a manufacturing strategy; the machine tests that strategy against reality. Once that clicks, CAD and CAM stop feeling like random technical terms. They become the bridge between an idea on a screen and a part you can hold.
