Faceting becomes much less intimidating once the machine stops looking like a mystery.
For many beginners, the first problem is not cutting the stone. It is understanding the tool in front of them. They hear words like mast, quill, index gear, cheater, dop, lap, platen, transfer jig, depth control, angle setting, and polishing lap, but they do not yet know what those parts do or why they matter.
That creates a real barrier.
If you do not know the vocabulary, you do not know what to search for. If you do not know what the machine is adjusting, you do not know why a facet missed its meet point. If you do not understand the difference between a cutting lap, a pre-polish lap, and a charged polishing lap, you can waste hours trying to fix a problem with the wrong tool.
This guide is meant to give beginners the machine map.
Not a full equipment buyer's guide. Not a complete faceting course. Not a deep troubleshooting manual.
This is the bridge between "What is faceting?" and "How do I cut my first stone?"
Before you follow a diagram, before you buy every accessory on the internet, before you blame your machine, you need to understand what each part does.
The Three Controls That Matter Most: Height, Angle, and Index
Most faceting decisions come back to three controls:
- Height
- Angle
- Index
These three controls determine where a facet lands, how steeply it is cut, and how far into the stone it goes.
Height
Height controls depth of cut.
When the faceting head or mast height changes, the stone contacts the lap differently. This determines how far the facet cuts before it reaches its intended meet point.
Beginners often underestimate height because it sounds less important than angle or index. In practice, height is one of the main reasons a facet either meets cleanly or misses.
If the angle and index are correct but the facet is too short or too long, height is usually part of the problem.
Angle
Angle controls the slope of the facet.
The angle setting determines how steeply the stone meets the lap. Pavilion angles, crown angles, girdle angles, and table angles all matter because they define the geometry and light performance of the finished gemstone.
In cabbing, your hand can roll the dome organically.
In faceting, the machine locks the stone into a measured angle.
That is the point.
Index
Index controls rotation.
The index gear lets you rotate the stone around its centerline in precise increments. This is how a faceter cuts matching facets around the stone.
If angle is the slope, index is the compass.
A beginner can think of it like this:
- Height controls how deep the cut goes
- Angle controls the tilt of the facet
- Index controls where around the stone the facet is placed
Once that triangle makes sense, the rest of the machine becomes easier to understand.
The Faceting Machine Base
The base is the foundation of the machine.
It supports the motor, lap, water system, mast or handpiece, splash pan, controls, and working surface. A good base is stable enough that the machine does not flex, wobble, or shift during cutting.
Faceting is about repeatability. If the base moves, the machine loses confidence. If the machine loses confidence, the beginner starts chasing problems that are not really technique problems.
What beginners should know:
- The base should be stable
- The machine should sit level
- The lap should run smoothly
- The water system should not flood the work area
- The electrical setup should be protected from water
- The machine should feel controlled, not improvised
A lightweight machine is not automatically bad. A heavy machine is not automatically good. What matters is whether the system is stable, repeatable, and accurate enough to learn on.
The Platen
The platen is the rotating part of the machine that holds the lap.
It is usually connected to the motor and spins the cutting or polishing surface. The lap sits on the platen, and the stone touches the lap during cutting.
If the platen is not running true, the lap may wobble. If the lap wobbles, facets become harder to control. If facets are harder to control, the beginner starts blaming their hands when the machine may be part of the issue.
What beginners should know:
- The platen should spin smoothly
- Laps should sit flat
- The machine should not vibrate excessively
- Dirt or debris under a lap can affect contact
- A clean platen helps maintain consistent cutting
A tiny bit of debris under a lap can create problems that feel mysterious later.
Clean surfaces matter.
The Lap
The lap is the disc that cuts, pre-polishes, or polishes the stone.
In cabbing, people often talk about wheels and grit progression. In faceting, laps play that role. Each lap has a job.
Some laps remove material. Some refine the surface. Some are used for final polish. Some are charged with diamond. Some are plated or bonded. Some are used with oxide polishes. Some are aggressive. Some are delicate.
This is one of the biggest areas of beginner confusion.
You do not need a diamond-plated lap for every stage. You also do not need every lap that experienced faceters argue about online.
You need to understand what the lap is trying to do.
Cutting Laps
Cutting laps remove material.
They are used to shape the rough and cut the main facets. These are usually coarser than polishing laps and may use diamond abrasive.
Common cutting lap categories include:
- Electroplated diamond laps
- Bonded diamond laps
- Sintered diamond laps
- Charged metal laps
- Specialty cutting laps
Electroplated diamond laps have diamond abrasive attached to the surface. They are common, accessible, and useful, especially for beginners. They cut well but can wear over time because the diamond is mostly on the surface.
Bonded or sintered laps hold abrasive differently and can last longer depending on construction and use. They are often more expensive but can be valuable for serious cutting.
Charged metal laps are different. A copper lap, for example, can be charged with diamond compound. That means diamond abrasive is embedded into the softer metal surface. Some cutters use charged copper laps for rough cutting or pre-polish because they like the control, economy, or surface behavior.
The important lesson is simple:
The lap type changes the feel of the cut.
A plated lap, a sintered lap, and a charged copper lap may all use diamond, but they do not behave the same way.
Pre-Polish Laps
Pre-polish is the bridge between cutting and final polish.
This stage removes cutting scratches and prepares the facet for the final polish. It is often where beginners either succeed quietly or fail loudly.
A poor pre-polish makes final polish frustrating.
Common pre-polish approaches may include:
- Fine diamond on metal laps
- Charged copper laps
- Charged tin laps
- Specialty composite laps
- Ceramic or other hard laps depending on the material and cutter preference
This is where many beginners get lost because they expect polish to fix everything.
It does not.
Final polish only works well if the surface is ready.
Polishing Laps
Polishing laps create the final reflective surface.
In faceting, polish quality is more demanding than cabbing because each facet is a flat mirror. Any scratch, drag mark, rounding, haze, contamination, or uneven polish is easy to see.
Polishing may involve:
- Diamond paste
- Diamond powder
- Oxide polish
- Tin laps
- Copper laps
- Ceramic laps
- Composite laps
- Specialty polishing systems
Faceters may polish at extremely fine diamond grades, such as 14,000, 50,000, or even finer depending on material and workflow. The exact number matters less than understanding the goal: remove pre-polish marks without rounding the facet or contaminating the surface.
This is where faceting feels very different from cabbing.
In cabbing, the goal is a continuous polished surface. In faceting, each facet has to stay flat, sharp, and correctly aligned.
A polish that is fine enough for a cabochon may not be fine enough for a faceted sapphire.
Copper, Tin, and Charged Laps
A charged lap is a lap that has abrasive added to it.
For example, a copper lap can be charged with diamond paste or diamond powder. The diamond embeds into the softer metal and becomes the working abrasive. Tin laps can also be used with diamond or certain oxide polishing methods depending on the workflow.
Why would someone use a charged copper or tin lap instead of a plated diamond lap?
Because control matters.
A charged lap can sometimes give a more refined cutting or pre-polish behavior. It can also be recharged, adjusted, and used in a way that gives the cutter more control over the surface.
But charged laps have a learning curve.
Too much diamond compound can create scratching or messy behavior. Too little may stop cutting efficiently. Contamination can ruin a polish. The lap has to be used, cleaned, and maintained correctly.
Beginner takeaway:
- Plated diamond laps are straightforward and accessible
- Sintered or bonded laps can be longer-lasting and more serious
- Copper laps can be charged with diamond for cutting or pre-polish
- Tin laps are often associated with polishing and fine finishing
- Final polish depends on the stone, lap, compound, pressure, and cleanliness
You do not need every lap to begin.
You need a working lap progression that makes sense.

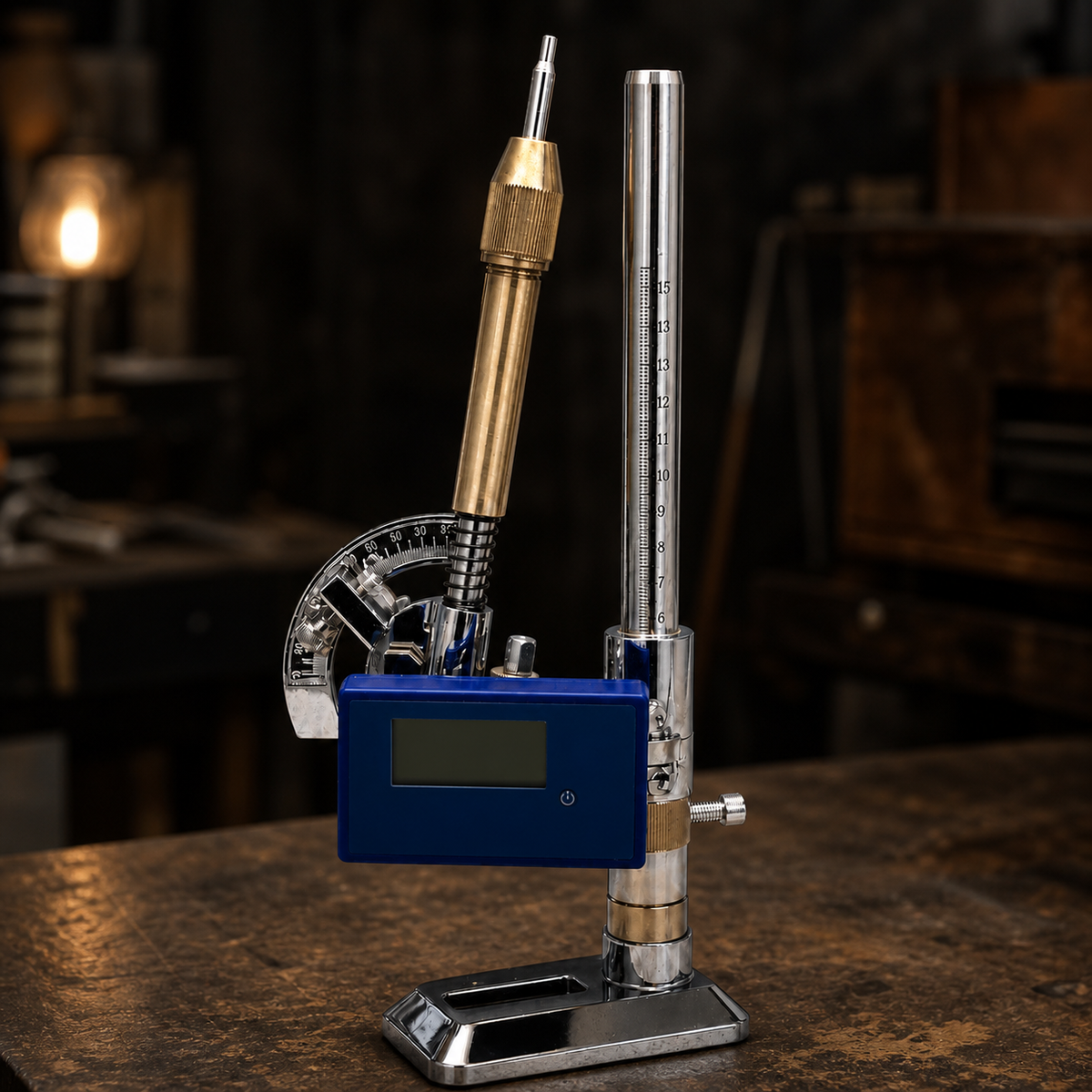

The Mast
The mast is the vertical support structure on many faceting machines.
It holds the faceting head and helps control the position of the quill relative to the lap. The mast is central to machine precision because it supports the mechanism that sets angle, height, and contact.
A rigid mast is important because flex creates inconsistency.
If the mast moves under pressure, facets may not cut where expected. If the mast is not aligned or repeatable, the beginner may struggle to hit meet points even when following the diagram correctly.
What beginners should know:
- The mast supports the faceting head
- It helps control height and angle
- Rigidity matters
- Repeatability matters
- Flex creates errors
- Poorly adjusted systems can create problems that look like technique errors
In faceting, precision is not decoration.
It is the machine's job.
The Faceting Head
The faceting head is the assembly that holds and positions the stone.
It usually includes the angle setting, index mechanism, quill, dop receiver, cheater, and controls that allow the cutter to orient the stone against the lap.
This is where the machine becomes a precision tool.
The faceting head answers three questions:
- At what angle is the stone touching the lap?
- At what rotational index is the stone positioned?
- How far is the stone allowed to cut?
If the faceting head is accurate, repeatable, and understandable, the beginner can learn.
If the faceting head is sloppy, confusing, or inconsistent, the beginner may fight the machine more than the stone.
The Quill
The quill holds the dop.
The dop holds the stone.
That makes the quill one of the most important parts of the machine.
The quill rotates with the index gear, positions the dop, and carries the stone into the lap at the selected angle. If the quill does not hold the dop securely, or if the dop is bent, loose, or poorly seated, the entire cut can suffer.
What beginners should know:
- The quill is the stone-holding axis
- It connects the dop to the machine
- It rotates through the index system
- It must hold the dop securely
- Bent dops or loose fit can cause bad meets
- Quill compatibility affects dop choice
This is also why dop stick size matters.
If your machine uses 6 mm dops, your dops, transfer tools, and accessories need to respect that system. A small mismatch at the holding point can become a larger error at the stone.
Types of Quill and Handpiece Systems
Not every faceting machine holds the stone the same way.
Most beginners encounter mast-type machines first, but there are other systems and historical approaches.
Mast-Type Machines
Mast-type machines use a vertical mast and faceting head to control angle, height, and index.
This is one of the most common modern faceting machine styles. It is structured, repeatable, and often easier for beginners to understand because the controls are visible and mechanically organized.
Best for:
- Beginners
- Hobby faceters
- Repeatable cutting
- Learning diagrams
- Standard faceting workflows
Platform-Type Machines
Platform-type machines use a different mechanical arrangement, often with the handpiece or stone position controlled relative to a platform.
Some experienced faceters prefer certain platform-style systems because of feel, speed, or precision. For beginners, the important point is that not every machine looks like a mast-style system.
Best for:
- Experienced users
- Cutters who prefer that workflow
- Specific machine ecosystems
Quadrant-Type Machines
Quadrant-type machines use a quadrant-style angle control system.
They are part of faceting history and still exist in certain equipment families or older machines. A beginner may encounter one when buying used equipment.
Best for:
- Historical or legacy systems
- Cutters familiar with their mechanics
- Specific older machine workflows
Handpiece or Handheld-Style Systems
Some systems use a handpiece or handheld quill approach rather than a mast-mounted faceting head.
These can be elegant in skilled hands, but they may be harder for a beginner if they do not already understand what the machine is controlling.
A handheld system does not remove the need for precision. It changes where that precision lives.
Best for:
- Experienced cutters
- Portable systems
- Certain commercial or specialized workflows
- Users who prefer tactile control
Beginner takeaway:
Machine style matters less than whether the machine is accurate, repeatable, supported, and understandable.
For most beginners, a clear mast-type machine is usually the easiest learning path.

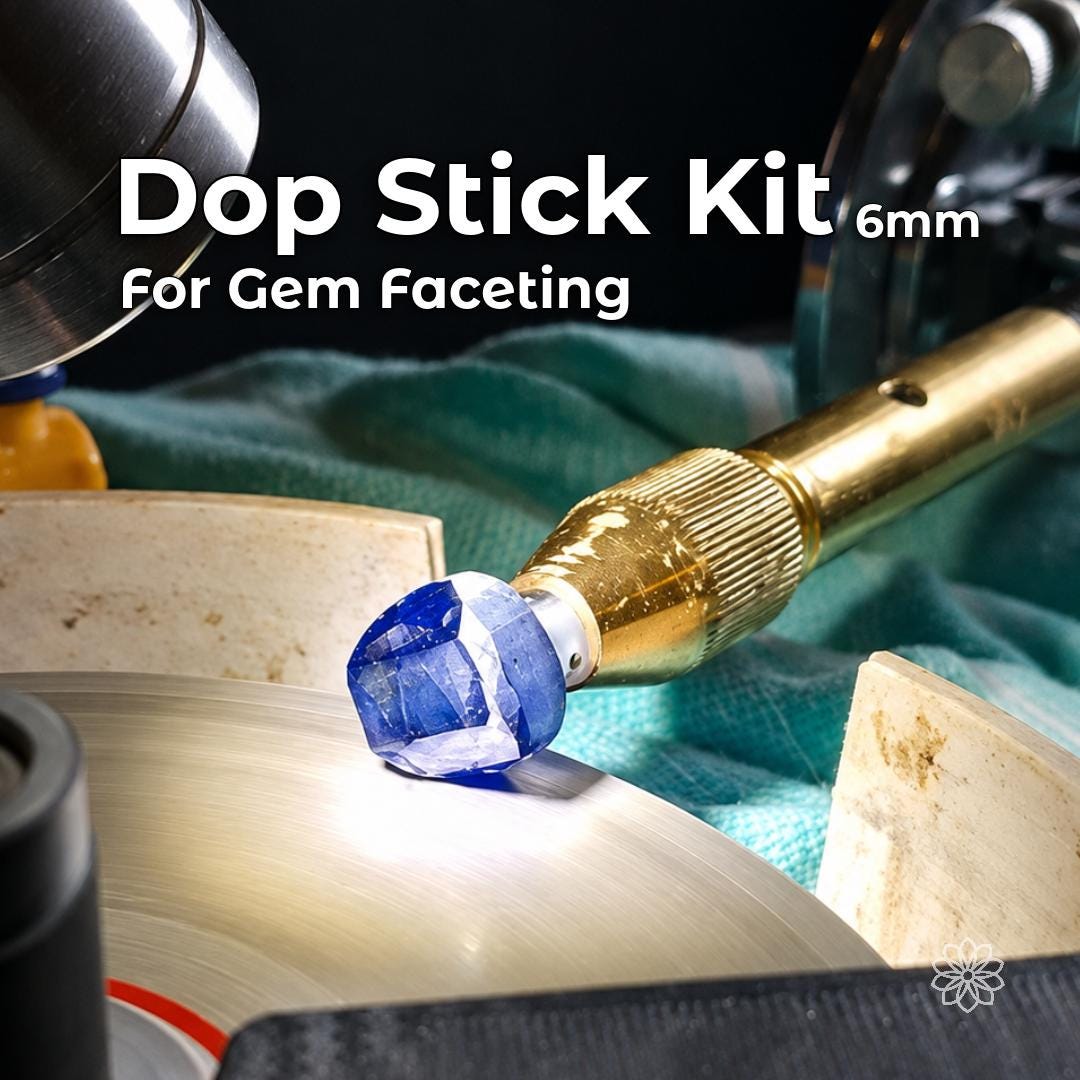

The Dop
A dop is the stick or holder that secures the gemstone.
The dop fits into the quill. The gemstone is attached to the dop with wax, epoxy, cyanoacrylate, UV adhesive, or another method depending on the cutter's process.
Dopping matters because the stone's relationship to the dop becomes the reference for the entire cut.
If the stone is crooked on the dop, the machine will faithfully cut a crooked setup.
That is a brutal but useful lesson.
Common dop types include:
- Flat dops
- Cone dops
- V dops
- Transfer dops
- Brass dops
- Steel dops
- Aluminum dops
- Polycarbonate dops
- Specialty dops for specific shapes or systems
The dop is not just a handle.
It is a geometry reference.
Wax, Epoxy, CA, and UV Adhesive
Faceters use different adhesive systems to attach stones to dops.
Each has advantages.
Wax
Dopping wax is traditional, fast, adjustable with heat, and widely used.
It requires temperature control and practice. Too cold, and the bond may fail. Too hot, and the stone or user may suffer. Wax is useful, but it is a skill.
Epoxy
Epoxy can create a strong bond and is useful in many precision workflows.
The downside is cure time and removal. In faceting, epoxy can be excellent, but it requires planning because the stone must survive transfer and removal without losing alignment.
Cyanoacrylate
Cyanoacrylate, often called CA or super glue, is used by some cutters for certain dopping or transfer workflows.
It can be fast and effective, but surface prep, adhesive choice, and removal method matter.
UV Adhesive
UV adhesive can be useful because it cures under UV light and gives the cutter some control over timing.
It is not magic. It still requires clean surfaces, correct fit, and understanding of the material.
Beginner takeaway:
The adhesive is part of the faceting system. It is not an afterthought.
The Transfer Jig
A transfer jig holds two dops in alignment so the stone can be moved from one dop to another.
This usually happens after the pavilion is cut and polished. The stone must be transferred so the crown can be cut.
Transfer is one of the most stressful beginner stages because the stone's alignment must survive the move. If the transfer is off, the crown may not align correctly with the pavilion.
Transfer problems can come from:
- Misaligned dops
- Bent dops
- Poor adhesive bond
- Bad seating in the jig
- Incompatible dop sizes
- Rushing the cure
- Removing the first dop too early
- Heat or solvent mistakes
- Dirty surfaces
This is where a purpose-built transfer system matters.
Gem Xfer fits this part of the workflow because it supports a cleaner, more controlled transfer process. For beginners, the value is not that it removes the need for care. The value is that it reduces unnecessary chaos during one of the highest-risk steps.
The Index Gear
The index gear controls rotational position.
It is usually a toothed wheel or indexed mechanism that allows the cutter to rotate the quill to exact positions. Those positions correspond to the diagram.
A common beginner mistake is thinking the index gear is just a wheel with numbers.
It is not.
It is the symmetry system.
If the diagram says to cut at index 96, 12, 24, 36, or any other position depending on the gear, the index gear is what places that facet around the stone.
Different index gears allow different symmetries. A 64-index gear and a 96-index gear do not divide the stone the same way. Some designs require specific index gears or need conversion.
Beginner takeaway:
- Index controls rotation
- The diagram tells you which index positions to use
- Index gear count matters
- Wrong index position means wrong facet location
- Index accuracy creates symmetry
If angle is the slope, index is the map.
The Cheater
The cheater is a fine rotational adjustment.
It lets the cutter slightly shift alignment when trying to bring facets into meet.
Beginners often misunderstand the cheater.
The cheater is not there to rescue bad cutting habits. It is not a substitute for good dopping. It is not a license to ignore index position. It is a small correction tool used when tiny alignment changes are needed.
Misusing the cheater can make a stone more confusing because now the cutter no longer knows whether the problem is height, angle, index, transfer, dop alignment, or cheater position.
Beginner takeaway:
Use the cheater carefully and sparingly.
If you are constantly using the cheater, something upstream may be wrong.
The Hard Stop
A hard stop limits how far the stone can move into the lap.
It gives the cutter a repeatable stopping point. This helps cut facets to consistent depth.
Not every machine uses the same stop system, but the concept matters. If the stop is set correctly, the cutter can return to a consistent contact point. If it is wrong, facets may overcut or undercut.
Beginner takeaway:
Depth control matters as much as angle and index.
Many missed meets are depth problems.
The Angle Setting
The angle setting controls the tilt of the dop and stone relative to the lap.
This determines whether you are cutting a pavilion main, crown facet, girdle facet, table, or other part of the design.
Beginners should not think of angle settings as approximate.
In faceting, small angle changes can affect meet points, symmetry, and light return.
The machine's angle system should be easy to read, repeatable, and accurate enough for learning.
Beginner takeaway:
If the wrong angle is set, the facet is wrong before the stone touches the lap.
The Water Drip or Coolant System
The water drip controls lubrication, cooling, and swarf removal during cutting.
Faceting is usually much cleaner than heavy cabbing, but it is still lapidary work. Stone residue, abrasive, and water collect on the lap, splash pan, and machine.
Water helps:
- Cool the stone
- Carry away debris
- Reduce dust
- Improve cutting behavior
- Keep the lap from loading too quickly
Too much water can make a mess. Too little can create heat, scratching, or dust risk.
Beginner takeaway:
Water control is part of the cut.
It is not just cleanup.
Splash Pan and Lap Covers
The splash pan catches water and slurry.
Lap covers and splash control accessories reduce mess, improve safety, and help manage wastewater. They also keep the bench more pleasant to use.
Beginners often underestimate splash management because it feels secondary to cutting. But a wet, dirty, poorly controlled machine creates frustration and risk.
Good splash control helps with:
- Cleaner workspace
- Safer wet electrical environment
- Less dried slurry
- Better visibility
- More controlled workflow
- Reduced contamination
This is also where accessories matter.
A simple splash guard, lap cover, or water-management upgrade may not feel exciting, but it can make the machine much easier to live with.
Lighting and Magnification
Faceting requires seeing small errors.
A 10x loupe, good task light, magnifying visor, or microscope can help inspect facet meets, scratches, polish quality, chips, and transfer alignment.
But magnification and eye protection are not the same thing.
A loupe helps you inspect. Safety glasses help protect your eyes.
The best setup respects both.
Use appropriate eye protection at the machine, especially when cutting, polishing, using adhesives, or working near spinning equipment. Use magnification deliberately for inspection. If possible, use safety-rated magnification or inspect away from active motion.
Beginner takeaway:
You cannot fix what you cannot see.
But do not trade eye safety for magnification.
Safety Notes for Faceting Machines
Faceting can look controlled and low-risk compared to cabbing, but the hazards are still real.
The machine uses spinning laps, water, electricity, abrasive, sharp stone edges, adhesives, and sometimes solvents or heat. Slurry can dry into dust. Laps can grab. Small stones can break loose. Adhesives can release fumes. Electrical setup matters around water.
Basic safety habits include:
- Use eye protection
- Control water around electricity
- Keep loose clothing and hair away from moving parts
- Use ventilation with adhesives and solvents
- Clean slurry wet instead of dry sweeping
- Avoid breathing dried lapidary residue
- Handle sharp girdles and rough carefully
- Keep laps and work surfaces clean
- Store compounds and chemicals safely
Rock dust is not your friend, even when the process looks clean.
Wet work reduces risk, but it does not eliminate the need for good habits.
Machine Selection: What Beginners Should Actually Care About
This article is not a full buyer's guide, but beginners need a basic filter.
When evaluating a faceting machine, focus on:
- Accuracy
- Repeatability
- Stable mast or handpiece system
- Reliable angle setting
- Reliable index system
- Smooth lap rotation
- Usable water control
- Parts availability
- Community support
- Transfer compatibility
- Dop compatibility
- Ease of adjustment
- Long-term serviceability
A cheap machine is not automatically useless.
An expensive machine is not automatically right for you.
The real question is whether the machine helps you learn or forces you to fight its limitations.
A beginner machine should be accurate enough that your mistakes are actually your mistakes.
That is how you learn.
How These Parts Work Together
A faceting machine is a geometry system.
The lap spins. The stone is attached to a dop. The dop sits in the quill. The quill rotates through the index gear. The mast or handpiece controls height and angle. The hard stop limits depth. The lap cuts the facet. The water system cools and cleans. The transfer jig preserves alignment when the stone flips.
Every part affects the finished gem.
A simple cutting sequence might look like this:
- Choose rough
- Preform if needed
- Attach the stone to a dop
- Set the angle
- Set the index
- Adjust height/depth
- Touch the stone to the cutting lap
- Cut the facet
- Repeat around the index positions
- Pre-polish
- Polish
- Transfer the stone
- Cut the crown
- Polish again
- Remove from dop
The machine is not just holding the stone.
It is enforcing the design.
Common Beginner Misunderstandings
"The Cheater Will Fix It"
Sometimes. Not always.
The cheater can correct small rotational alignment issues, but it cannot fix poor dopping, wrong index, bad transfer, wrong height, or sloppy machine setup.
"A Finer Lap Will Fix Deep Scratches"
No.
If deep scratches remain, you probably moved forward too soon or contaminated a later stage. Final polish does not erase bad cutting.
"Diamond Lap" Means One Thing
It does not.
Electroplated diamond, sintered diamond, bonded diamond, and diamond-charged copper all behave differently.
"The Index Gear Is Just a Number Wheel"
No.
The index gear controls symmetry. Wrong index, wrong geometry.
"The Dop Is Just a Stick"
No.
The dop is the reference line between the stone and machine. Bent, loose, or poorly aligned dops create real cutting problems.
"Transfer Is Just Gluing the Stone Again"
No.
Transfer preserves the relationship between pavilion and crown. If the transfer fails, the second half of the stone may not align with the first.
"A Cheap Machine Is Fine Because I'm Just Learning"
Maybe.
But if the machine is too inaccurate, you will learn confusion instead of faceting.
"A More Expensive Machine Will Make Me Good"
Also no.
A better machine removes mechanical excuses. It does not replace patience, inspection, or process discipline.
Where Aetherium Tools Fit
Faceting is a precision workflow, and precision workflows fail at the support points.
The machine does the cutting, but the bench system protects the process.
Gem Axis V3 supports alignment and centering. This helps reduce dop-related setup chaos before the stone reaches the machine.
Gem Xfer supports controlled transfer. Since transfer is one of the most intimidating beginner stages, having a stable way to align and move the stone between dops reduces risk.
Polycarbonate 6 mm dop sticks support accessible practice and experimental workflows, especially for users working with compatible 6 mm quill systems.
A magnetic dop stand or dop holder keeps dops organized while stones cure, rest, or wait between stages. That may sound minor until a dop rolls, tips, contaminates adhesive, or loses its place in the sequence.
The Dop of All Trades supports hybrid workflows where faceting, preforming, engraving, CNC, and fixture-based stone work overlap.
The point is not that tools replace skill.
The point is that good tools reduce unnecessary failure points so the beginner can focus on learning the craft.
Final Thought
Faceting is not mysterious because it is impossible.
It is mysterious because the vocabulary is dense and the machine hides many small relationships inside one precise system.
Once you understand the parts, the process starts making sense.
The mast supports the faceting head. The quill holds the dop. The dop holds the stone. The index gear controls rotation. The angle setting controls slope. Height controls depth. The lap cuts or polishes. The transfer jig preserves alignment. The water system controls heat, debris, and dust. The cheater makes small corrections, not miracles.
That is the machine.
A faceting diagram tells you what to cut.
The machine gives you the controls to cut it.
Before chasing complex designs, expensive rough, or perfect brilliance, learn the tool. Learn what each part does. Learn how the controls interact. Learn what problems each part can create when misunderstood.
The first faceted stone does not begin with the first facet.
It begins when the machine stops looking like a mystery.
